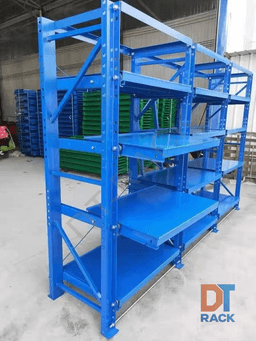

Drawer-type mold shelves

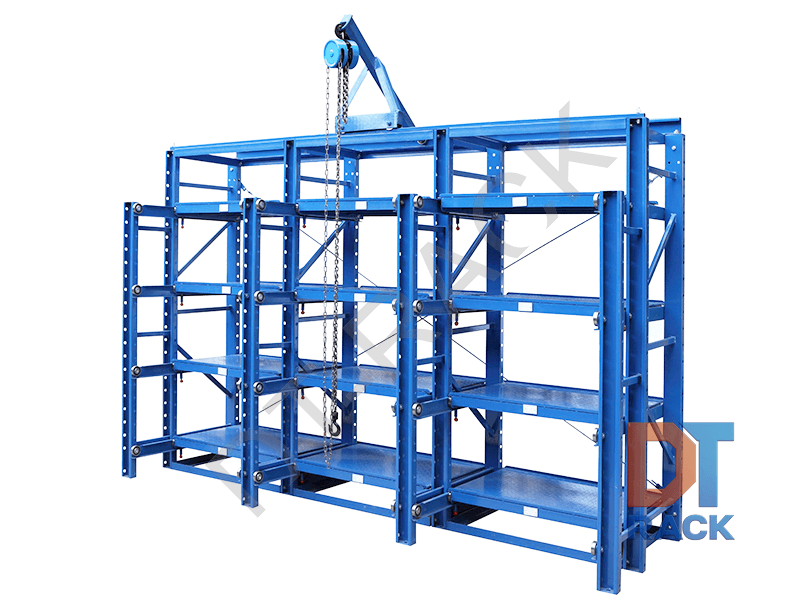

Drawer-type mold shelves are a type of storage equipment specially designed for storing heavy objects such as molds. The following is its product description: 1. Structural design: It adopts a combined assembly method and is mainly composed of column sections, guide grooves, drawer layers, tie rods, positioning pins and other components, which are connected by bolts, ensuring a stable structure. The drawer tray is composed of a slide rail and a drawer frame. The frame is welded from rectangular tubes and bent parts, and is matched with steel plates. The slide rail is fixed by bearings and can roll easily in the guide groove. 2. Specification parameters: The standard size is generally 3100×615×2000mm, supporting a drawer design of 3 to 6 layers. The layer height can be adjusted up and down within the range of 50 to 100mm. The single-layer load-bearing capacity is usually 200 to 1500kg, and for heavy-duty shelves, it can reach 3000kg. Customization is available as needed. 3. Product features: The top can be equipped with a hand chain hoist trolley for easy lifting of molds. The bottom is equipped with roller tracks, allowing for easy pulling even after being loaded. The drawer is equipped with safety devices such as locating pins and limit pins to ensure safe use. In addition, it has the advantages of occupying less space, having heavy layers, detailed classification, and simple operation. It can effectively save space and facilitate mold maintenance. 4. Scope of application: Widely used in industries such as mechanical manufacturing, automotive manufacturing, and injection molding, it is suitable for storing various molds, especially in situations where there are no suitable forklifts available on site. 5. Material and Color: The material is mostly Q235 or Q345 steel, with a thickness ranging from 1.2mm to 4.0mm. The surface is treated with environmentally friendly powder coating, and the colors include orange-red, blue, white, etc. Customization is available.
